Seal
IT 600

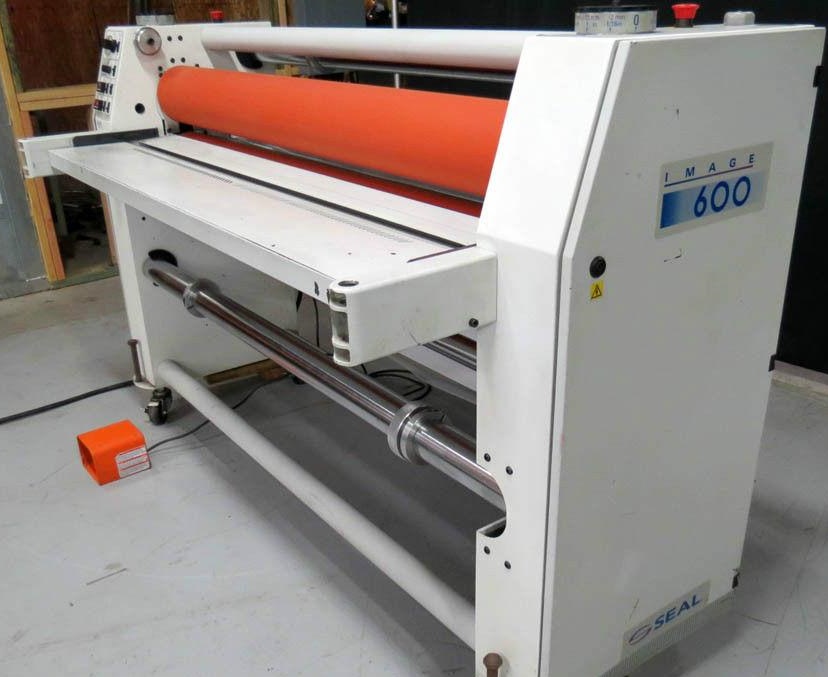

Seal IT 600 Laminators
Acost effective way to capitalize on profitable, large-format display opportunities, the Image 600 offers you full-featured finishing capabilities up to 61″ (155 cm) wide. The Image 600 is capable of cold or heat-activated over-laminating and hot sealing. Ideal for finishing ink jet, photographic and electrostatic prints. The SEAL 600 offers pressure-sensitive mounting and heat-activated mounting and laminating; Heat-assisted, and heat-activated mounting and laminating; and hot sealing in one pass.
Features
• High-release silicone rollers for easy cleaning
• Pneumatic pressure adjustment with fine tune control for a smooth finish
• Electric heat with digital controls for even heating and maximum accuracy
• Dial-in roller height adjustment for fast, accurate nip setting
• Vacuum feed table for flat, wrinkle-free feeding of digital prints
• Cooling fans for smooth output when encapsulating
• Swing-out supply shafts with brakes for easy loading and precise film tension adjustment
• Digital media roll easel for convenient roll-to-roll laminating
• Automatic upper take-up shaft for removing release lines
• Easy-to-use controls & foot pedal for hands-free operation
• Comprehensive safety systems with emergency stops and electric eyes
• Floor cart with wheels
Specifications
• Maximum Working Width 61″ 155 cm
• Maximum Working Width (heated encapsulation) 140 cm
• Maximum Speed 3.1 meter per minute
• Maximum Roll Opening 29 mm
• Maximum Roll Temperature 121ºC
• Dimensions 198 cm x 81 cm x 127 cm
• Net Weight 251 kg
• Mechanical Requirements 2 CFM compressed air @ 100 psi, 0.25″ @ (0.6 cm) ID flex. line
• Electrical Requirements 240-380 VAC 50/60 Hz, 3 phase
• Maximum Power Consumption 7,200 Watts
€ on request
